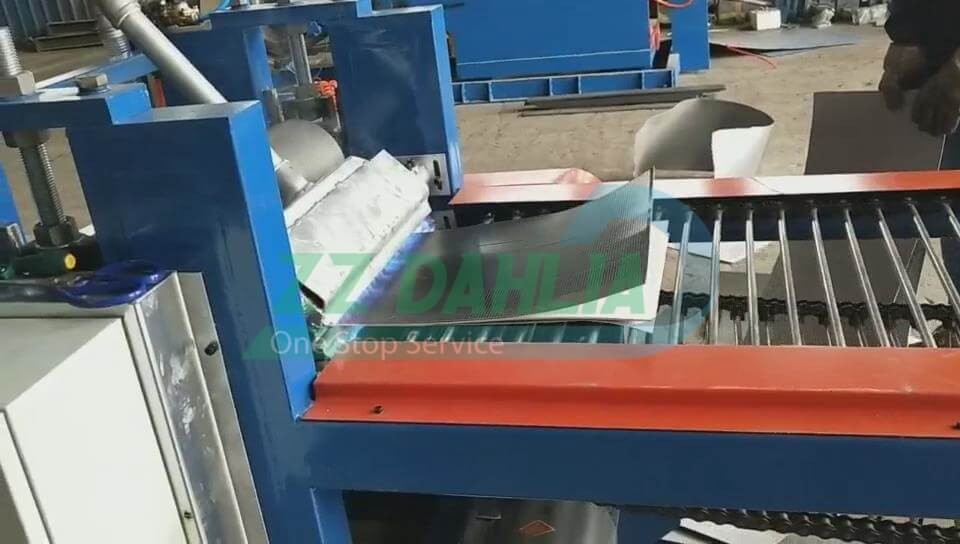

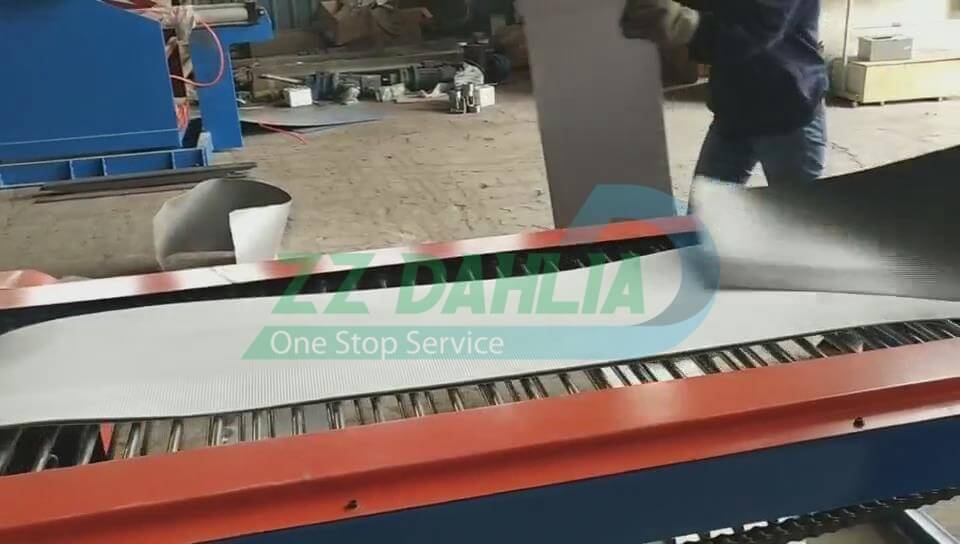

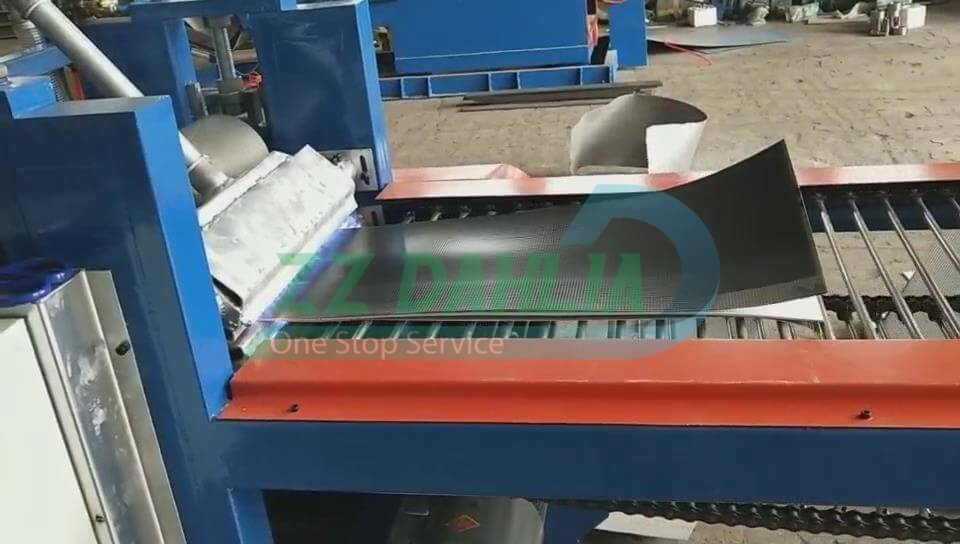

Waste ACM Aluminum cladding panel peeling machine
It is an innovative solution designed to efficiently separate aluminum sheets from plastic sheets of waste ACM ACP board.
Introduction:
Can efficiently separate aluminum sheets from plastic sheets of ACM ACP board..
By applying heat to the ACM board, the machine melts the binding material, allowing for a seamless separation of aluminum and plastic.
User-friendly and easy to operate, this machine requires a relatively small investment while delivering high efficiency and quick returns on investment.
With a processing capacity of up to 4 tons per day, depending on the board size, it offers a robust solution for manufacturers.
The output products include recyclable aluminum sheets and PE sheets, making it an environmentally friendly choice that contributes to sustainable practices in the industry.
It is effcient aluminum plastic panel peeling equipment in recycling industry.
Working process (how to peel Waste ACM Aluminum cladding panel):
This equipment Proficiently expedites the separation of metal plates from the core plate by employing a meticulously orchestrated sequence of processes.
At first, with the precise feeding of the composite board along a predetermined direction, it is subsequently extruded through custom-designed press rollers, incorporating surface protrusions.
This pivotal stage engenders inward recesses on both facets of aluminum plastic composite board, thereby expanding the contact area between the metal and core plates.
Concurrently, the extruded composite sheet is subjected to a spraying and heating treatment, capitalizing on the disparate thermal expansion coefficients of the constituent materials. As the metal and core plates expand, they spontaneously disengage from each other, abetted by the pits fashioned during the roller pressing phase.
This advanced methodology not only significantly elevates the efficiency of the peeling process but also enhances the overall surface area, thereby further optimizing the separation dynamics for composite materials, culminating in an improved and streamlined operational outcome.
