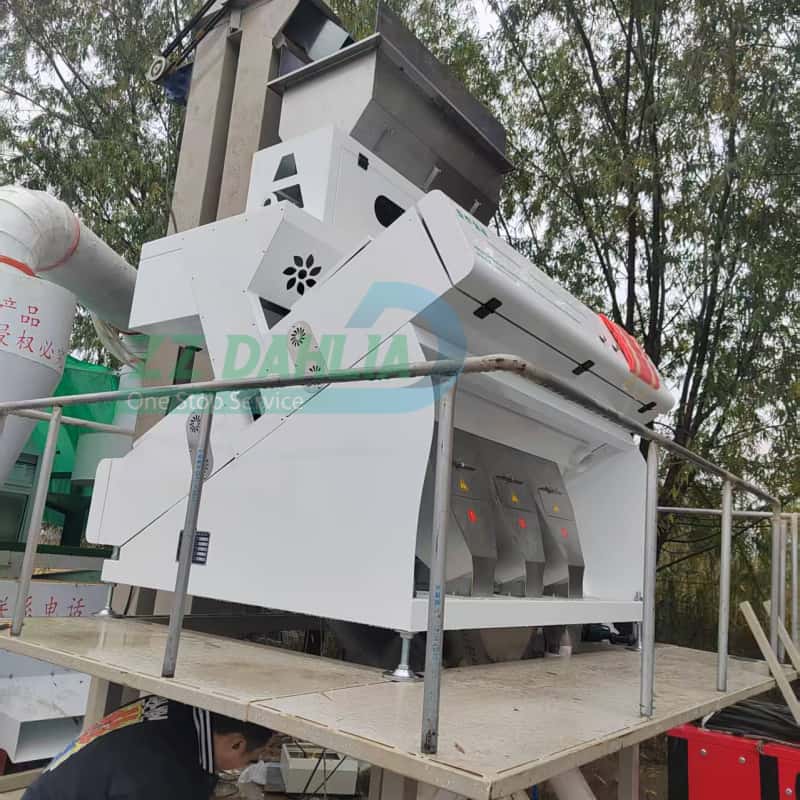

Cu Al color sorter machine
Cu Al color sorter machine /Metal color sorter is a kind of equipment that uses optical and electronic technology to sort metal materials
Introduction:
Cu Al color sorter machine /Metal color sorter is a kind of equipment that uses optical and electronic technology to sort metal materials, which is widely used in metal recycling, ore sorting, electronic waste treatment and other fields. Its main function is to automatically identify and sort out the target metal according to the color, luster, shape and other characteristics of the metal material, so as to improve the sorting efficiency and accuracy.
The working principle of the metal color sorter:
l Material handling
The metal material to be sorted is evenly fed into the detection area by means of a vibrating feeder or conveyor belt(client can provide), ensuring that the material is evenly distributed and avoiding overlap or accumulation.
l Optical inspection
Using a high-resolution CCD camera or photoelectric sensor, the metal surface is scanned to capture features such as color, gloss, and shape.
A LED light source provides stable illumination to ensure detection accuracy.
l data processing
The inspection data is transmitted to the control system in real time, and the metal features are analyzed by image processing algorithms such as deep learning and pattern recognition.
The system determines whether the material meets the sorting requirements based on preset parameters such as the color range of the target metal, gloss threshold.
l Sorting execution
The metals that meet the requirements are sorted to the target area by means of air flow nozzles or robotic arms.
Non-compliant materials continue to be conveyed to other processing stages.
Technical data:
Name | Technical data |
Metal color separator | Motor power:2kw Power Supply :AC220V/50HZ Sorting accuracy:>=99.9% capacity:200-300kg/h Channel:3 pcs Dimension:1724*1536*1690mm Weight:750KG |
