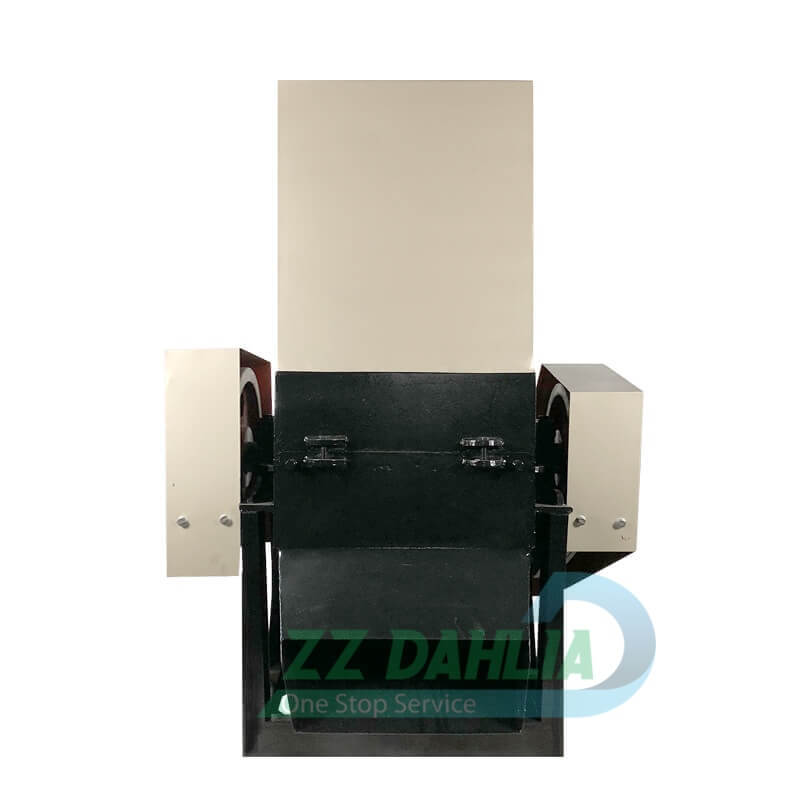

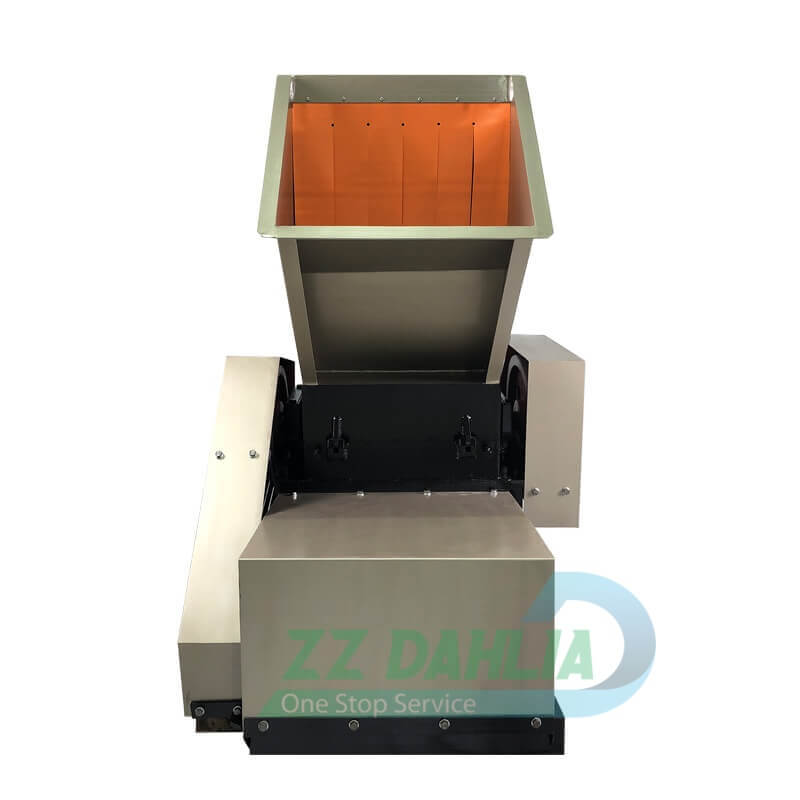

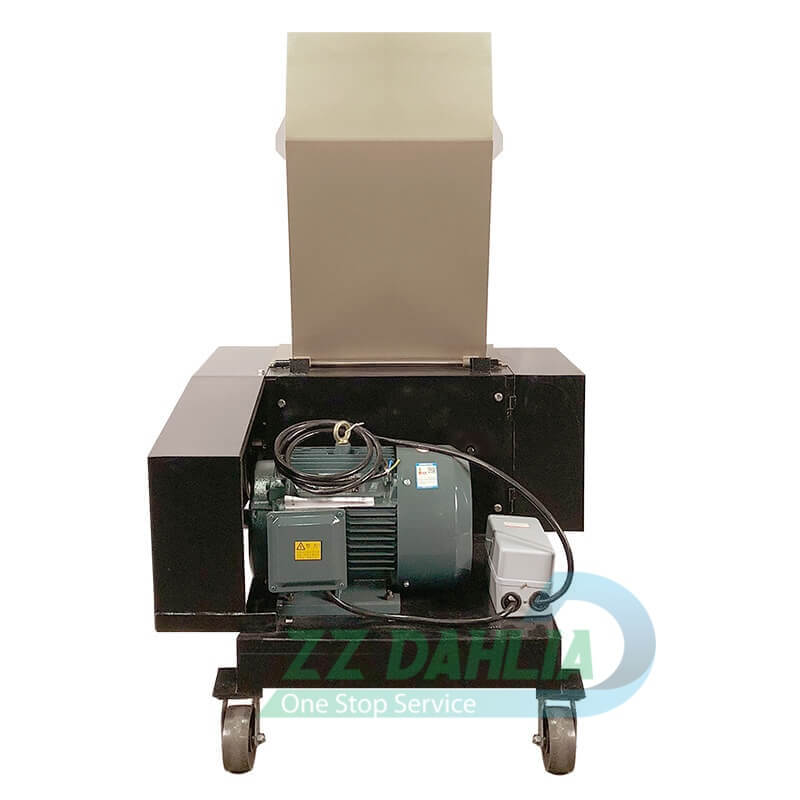

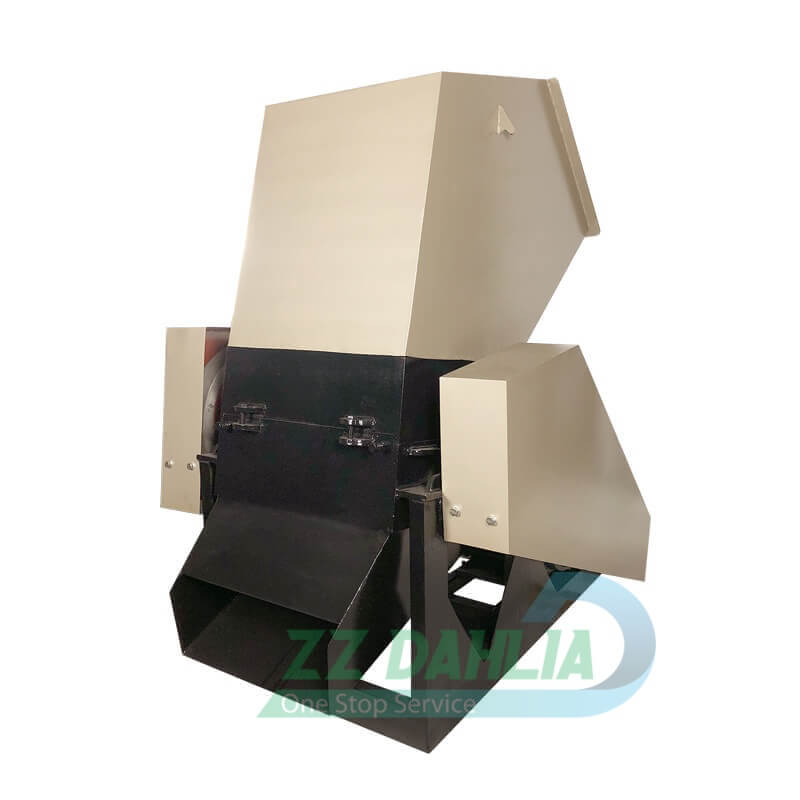

Large inlet plastic crusher machine
Suitable for recycling plastics such as boxes, thin pipes, blow-molded parts, bottles, shells, PE, and PP film materials.
Introduction:
Designed to expertly process a diverse array of plastic waste materials. These include, but are not limited to, boxes, thin pipes, blow molding components, bottles, shells, and films fashioned from polyethylene and polypropylene.
Standout feature of this machine is its cutting-edge flat knife series, which not only enhances usability but also renders operation and facilitates swift tool changes, thereby streamlining the overall workflow.
Wide structure of the flat knife is particularly adept at crushing thin-walled and lightweight materials with ease, significantly boosting crushing efficiency. This results in optimal processing outcomes and reduced operational strain.
Technical data:
Model | K-600 | K-700 | K-800 | K-1000 |
Power（kw） | 15 | 18.5 | 22 | 30 |
Movable knife（pc） | 6 | 6 | 6 | 6 |
Fixed knife（pc） | 4 | 4 | 4 | 4 |
Blade materials | High-quality alloy steel (forging process) | |||
Rotating dia.（mm） | 460 | 460 | 460 | 460 |
Feeding size（mm） | 620*470 | 720*470 | 820*470 | 1000*470 |
feeding height（mm） | 1410 | 1415 | 1420 | 1500 |
Standard screen pore size（Φ） | 14 | 14 | 14 | 14 |
Crushing capacity | 550 | 700 | 900 | 1000 |
Machine weight（kg） | 860 | 980 | 1180 | 1600 |
Overall Size（mm） | 1360*1180*1846 | 1470*1280*1860 | 1520*1380*1880 | 1730*1160*1870 |
