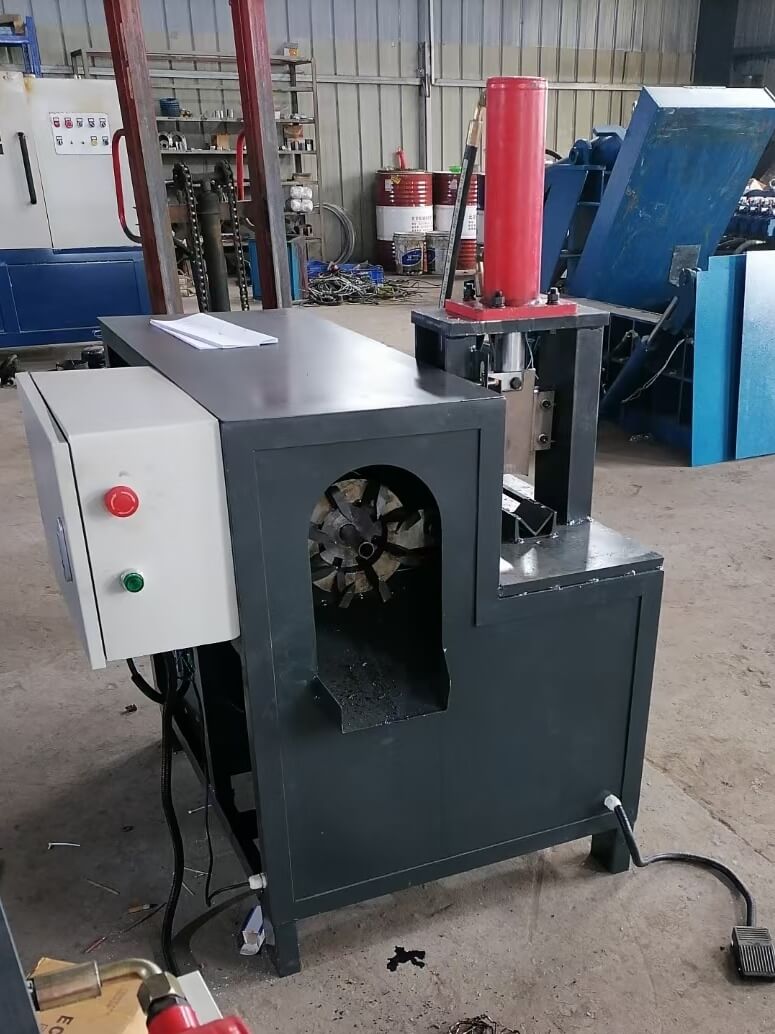

Motor rotor dismantling equipment for sale
Motor rotor dismantling equipment is used to separate valuable copper windings from iron cores in recycling scrap motor rotor.
Introduction of Motor rotor dismantling equipment
Motor rotor dismantling equipment is used to dismantle copper coils(enameled wires) and silicon steel sheets from scrap motor rotor.
The equipment include cutting system,heating system and drawing system to recycle copper winding.
This process not only helps in recovering valuable materials but also plays a crucial role in environmental protection by reducing waste.
The recovered copper can be reused in various industrial applications, while the silicon steel can be recycled for use in manufacturing new motor components.
How does equipment work
The cutting system employed in the equipment is designed to precisely cut through the rotor, separating the copper coils from the silicon steel sheets.
The heating system then aids in loosening the coils, making the drawing process easier and more efficient.
Overall, this advanced equipment contributes significantly to the sustainable management of scrap motor rotors, ensuring resource conservation and minimizing the impact on the environment.
Technical parameter :
Power supply voltage: 380V/50HZ
Motor power: 4kw
Mailbox volume: 80L
Stroke of tangent cylinder: 150mm
Stroke of the thread removal cylinder: 200mm
System operating pressure Motor Rotor Stator Dismantling Machine: 7-8MPA
Dimensions: 800*700*1300MM
Equipment weight: 270kg
High frequency heating machine: 30KW
