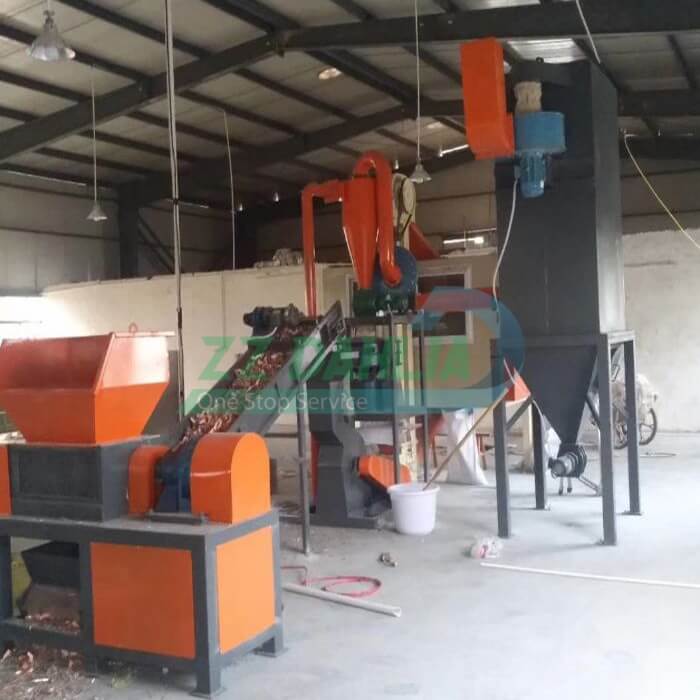

Waste circuit board recycling equipment
It is used to separate metal and non-metal in waste circuit boards, copper clad laminates, circuit boards and scraps, and recover the metal and resin powder in them.
Introduction：

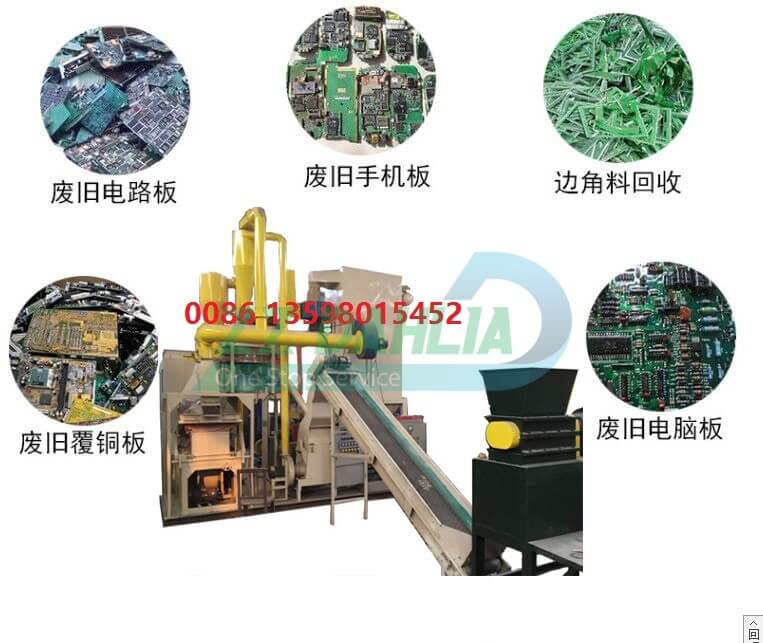

Waste circuit board recycling machine is an innovative solution designed for efficiently processing recycling various types of waste circuit boards, including those from computers, TVs, and aluminum boards.
It excels in mechanical crushing and recycling of waste electrical appliances, ensuring high metal recovery rates, with purity levels reaching an impressive 99.99%.
This compact device features a unique structure that minimizes power consumption while maintaining stable performance, making it an eco-friendly choice for recycling efforts.
By effectively handling printed circuit boards and processing waste, this machine plays a vital role in promoting sustainability and resource recovery in the electronics industry.
Working process:
It begins with a robust shredder that reduces printed circuit boards into manageable pieces.
Following this, a hammer mill further pulverizes the material, preparing it for the next stage, which is a grinder that finely grinds the remnants.
An air separator then distinguishes between different materials, effectively separating metals from non-metals.

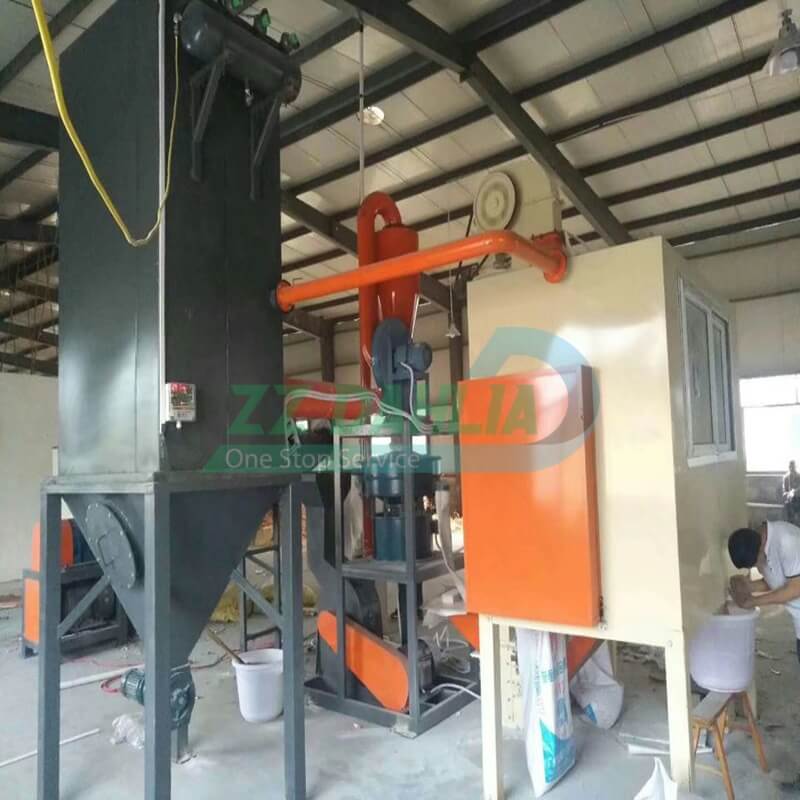

To ensure a clean operation, a pulse-jet bag filter dust collector captures any dust or airborne particles created during the process.
Finally, a high voltage electrostatic separator is utilized to extract valuable metals, such as copper and gold, from the mixture, maximizing the recovery of valuable resources while minimizing environmental impact.
This entire setup exemplifies the integration of technology in waste management, paving the way for sustainable recycling practices.
Feature:

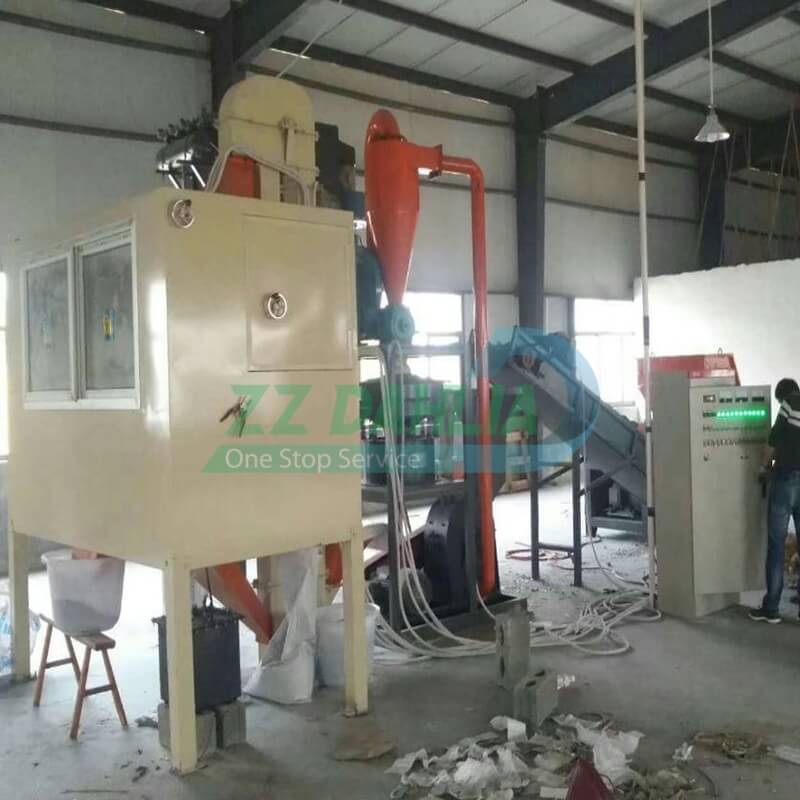

The assembly line is equipped with advanced PLC intelligent programming for automatic control, complemented by a user-friendly man-machine interface touch screen.
This innovative design ensures that the entire production line operates seamlessly and efficiently. With a compact structure and well-thought-out layout, the equipment maintains stable performance, benefiting from noise reduction treatments in the crushing segment.
The crushing process involves shredding and crushing, utilizing circulating water to effectively cool both the internal and external components of the crushing chamber.
Additionally, a negative pressure feeding system and a pulse dust removal system work together to enhance the working environment by minimizing dust.
In the separation phase, a combination of specific gravity separation and electrostatic selection techniques achieves an impressive metal recovery rate of over 99%, showcasing the effectiveness and efficiency of this state-of-the-art equipment.
Technical data:
Model
Motor power
（kw）
Capacity
（kg/h）
Dimension
（mm）
Weight
（kg）
DL-200
45
150-200
6000*7500*4200
4250
DL-3
0
68
200-300
7000*8200*4500
6500
DL-5
00
110
300-500
8000*11000*4800
8500
DL-800
198
1000-1200
8200*16000*5250
12500
