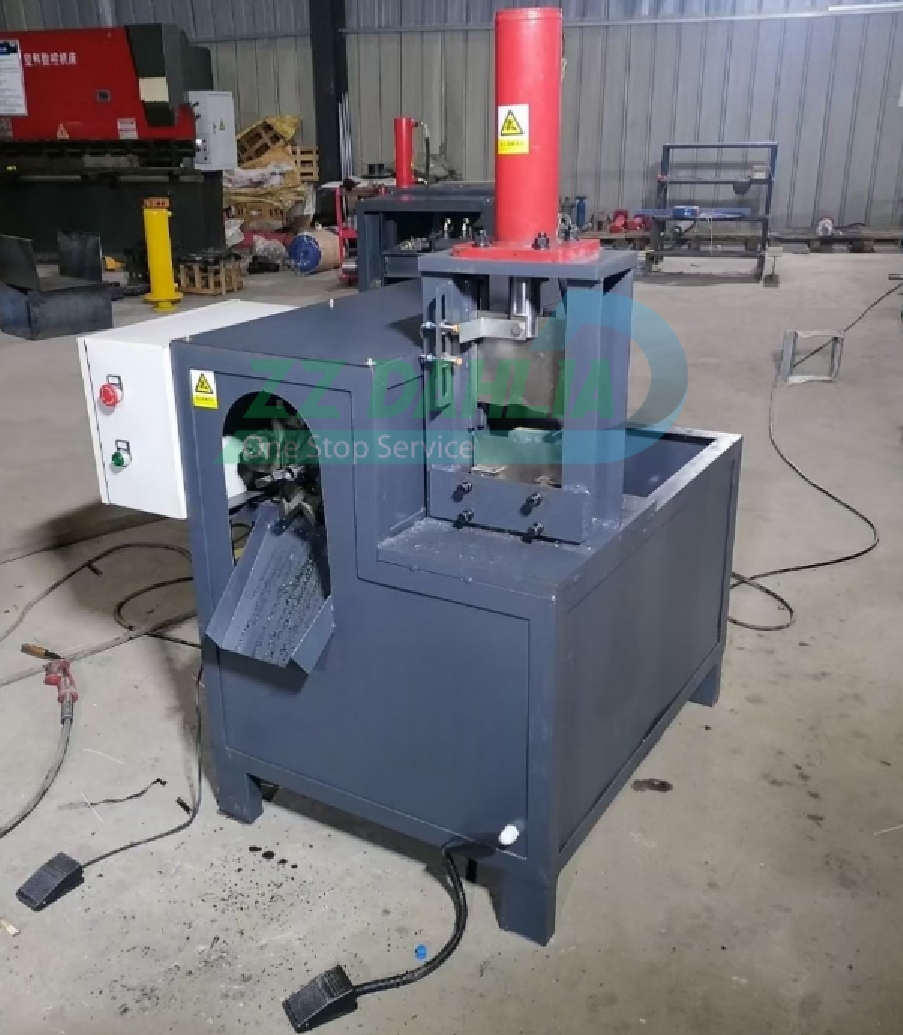

Motor rotor copper removal equipment

Motor rotor copper removal equipment

Motor rotor copper removal is a crucial process in the recycling and maintenance of electric motors.

To effectively dismantle the rotor and remove the copper components, specialized equipment and a systematic approach are employed.

Below are the detailed steps involved in this process.

Step 1: Remove the Copper Head The first step in dismantling the rotor involves the careful removal of the copper head on one side. This is a critical action as the copper head is tightly integrated into the rotor structure. Proper techniques and tools are used to ensure that the removal is conducted safely and efficiently, minimizing the risk of damage to the rotor itself or injury to the technician. It is essential to assess the rotor's condition and identify any specific challenges that may arise during this initial phase.

Step 2: High-Frequency Heating Once the copper head is removed, the second step utilizes high-frequency heating equipment for rotor disassembly. This technology is pivotal in the process, as it facilitates the thermal expansion of materials, making it easier to separate the copper windings from the rotor core. By carefully controlling the heating parameters, technicians can achieve the optimal temperature that allows for efficient disassembly without compromising the integrity of the remaining components. High-frequency heating not only accelerates the removal process but also reduces the risk of damage compared to traditional methods.

Step 3: Grabbing the Copper The final step in the rotor disassembly process involves effectively capturing the copper windings.

After the rotor has been heated, specialized tools are employed to grip and pull the copper components away from the rotor assembly.

This requires precision and an understanding of the copper’s properties post-heating, as it may be more malleable and easier to manipulate. Successfully completing this step ensures that the copper is removed intact, ready for recycling or repurposing.

The process of motor rotor copper removal is essential in managing electric motor components responsibly. By adhering to these steps—removing the copper head, employing high-frequency heating, and skillfully grabbing the copper—technicians can ensure a smooth and effective disassembly process. Utilizing the right equipment and techniques not only enhances safety but also improves the overall efficiency of motor recycling operations.
